Unity UGUI Principles (1): Canvas Rendering Mode

Goal

• Understand the different UI Render Modes.

Other articles in this series

• Unity UGUI Principles (1): Canvas Rendering Mode
• Unity UGUI Principles (2): Canvas Scaler and UI Scaling
• Unity UGUI Principles (3): RectTransform
• Unity UGUI Principles (4): EventSystem, Events, and Input
• Unity UGUI Principles (5): Auto Layout

Environment

• Windows 7
• Unity 5.2.4

Canvas

The Canvas component defines the space where Unity lays out and renders UI. Every UI element must live under a Canvas. In plain terms, Canvas is the root renderer for UGUI.

Render Mode

Unity provides three UI render modes:

• Screen Space - Overlay
• Screen Space - Camera
• World Space

Screen Space - Overlay

In this mode, the UI does not reference a Camera. It renders directly on top of the scene.

• Pixel Perfect: Makes images sharper, but adds performance cost. Heavy UI animation may become less smooth.
• Sort Order: Controls draw order. Higher values render in front.

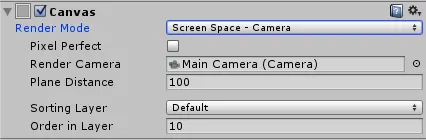

Screen Space - Camera

This mode uses a Camera as the reference and places the UI plane at a set distance in front of it. Because the UI depends on the Camera, it reacts to screen size, resolution, and frustum changes. Scene objects closer to the Camera than the UI plane can occlude the UI.

• Render Camera: The Camera used for UI rendering.
• Plane Distance: The distance between the UI plane and the Camera.
• Sorting Layer: The Canvas sorting layer, configured under Edit -> Project Settings -> Tags and Layers -> Sorting Layers.
• Order in Layer: The order inside the selected sorting layer. Higher values render in front.

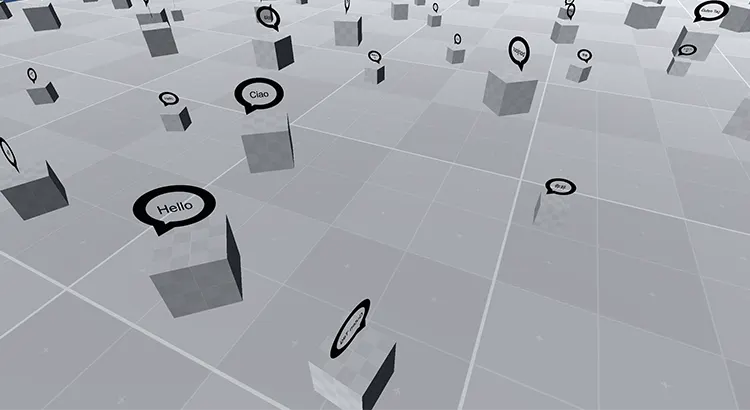

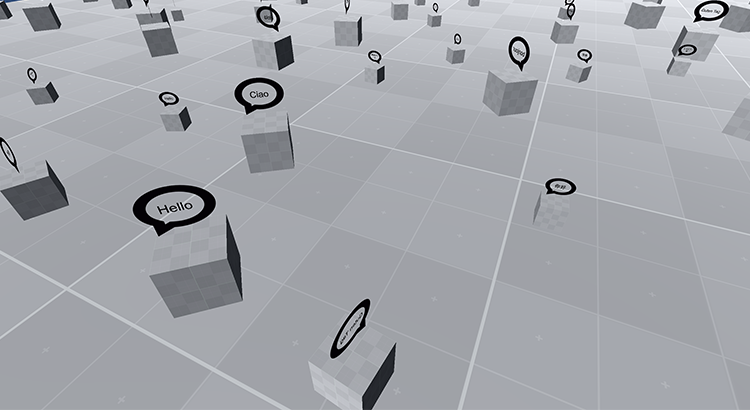

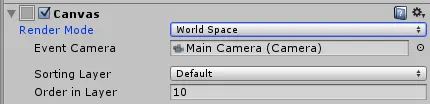

World Space

World Space treats the Canvas as a GameObject in world coordinates. Use it when the UI should exist as part of the 3D scene.

• Event Camera: The Camera that handles UI events such as click and drag. Only the assigned Camera can trigger those events.
